Quick Details

  • Type: Dry Container
  • Length (feet): 20', 40'
  • Capacity: 10000
  • External Dimensions(l x W x H)(mm): ISO
  • Internal Dimensions(l x W x H)(mm): ISO
  • Place of Origin: Ho Chi Minh City, Vietnam
  • Brand Name: Phuong Nam Phat
  • Use for: Dry container or similar
  • Container flooring plywood: 28*1160*2400mm
  • Container roof panel: 2*1045*2356mm
  • Container side panel: 2*1160*2400mm
  • Container corner casting: 178*162*118mm
  • Container lock door: ISO, 20', 40'
  • All parts for container: ISO, 20', 40'
  • Product Name: Steel Container parts for building, spare dry container
  • Application: Building or repairing Container 10ft, 20ft, 40ft

Packaging & Delivery

Packaging Details pallet package or loose package
Delivery Time 14 days after receive your L/C or deposit
Company Information

  Established in 2000s, Phuong Nam Phat  Co,ltd  is one of the leading manufacturers  of dry container partscontainer roof panel, container roof panel patch container flooring plywood, loading and undloading equipents, and also a supplier of  repair serivce and leasing Reach Stacker vehicle in Vietnam.





Product Description



material

thickness

wave deepth

description

Roof panel

Corten-steel

2.0mm

20mm

corrugagion steel panel, h Technique: Hot Rolled, Surface Galvanized

Side panel

Corten-steel

2.0mm

36mm

corrugagion steel panel,  Technique: Hot Rolled, Surface Galvanized

front panel

Corten-steel

2.0mm

45.6mm

corrugagion steel panel,  Technique: Hot Rolled, Surface Galvanized

door panel

Corten-steel

2.0mm

36mm

corrugagion steel panel,  Technique: Hot Rolled, Surface Galvanized

corner post

Corten-steel

6.0mm



high intensity steel panel,  Technique: Hot Rolled, Surface Galvanized

bottom side rail

Corten-steel

4.5mm



high intensity steel panel, zinc rich primer paint coated

bottom crossmember

Corten-steel

4.0mm



high intensity steel panel,  Technique: Hot Rolled, Surface Galvanized

corner cast fitting

Corten-steel





precise casting, size: 178mm*162mm*118mm

locking devices

STK41





including locking rod, locking cam, cam keeper,etc. hot dipping galvanized ( Thickness : 75 microns )

hinge

S20C





including hinge plate, hinge pin(stainless steel), hinge washer, hinge butt.

gasket

EPDM





"J-C" type, for seal

ventilator

A.B.S





for ventilating, water-proof.

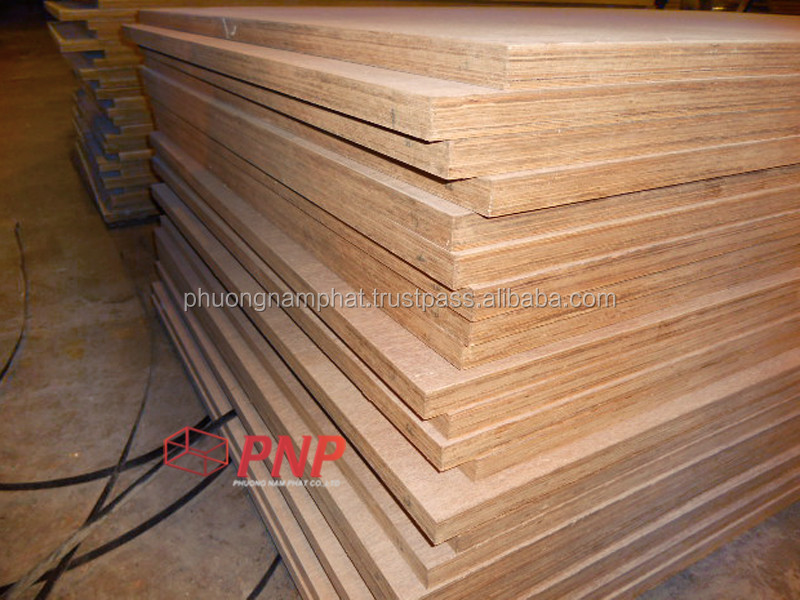

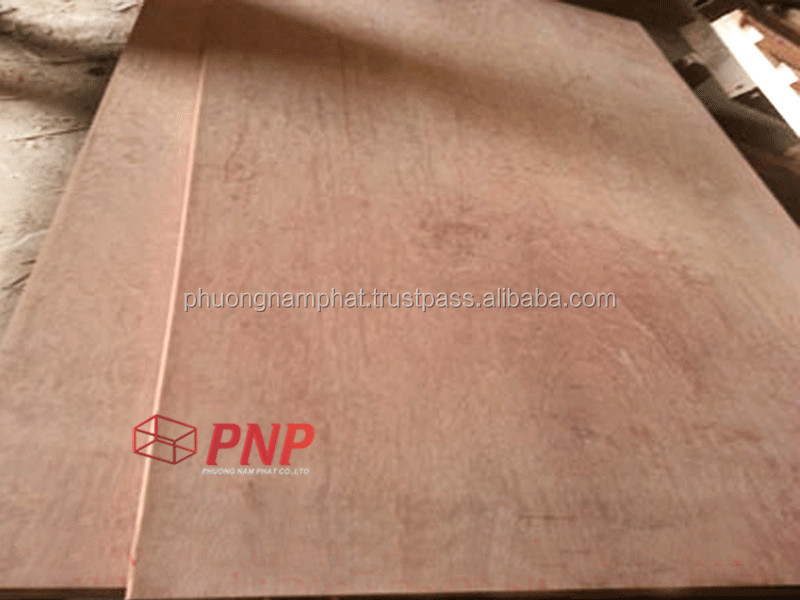

     2.  Keruing container flooring plywood or high quality container flooring plywood



Specifications keruing container flooring plywood, hardwood container plywood



Material: Keruing wood
Glue: Water boiled proof [WBP] (Phenoli or Melamine) E1

Thickness: 28mm

Dimensions: Length x width (1160mm x 2400 mm)

Number of ply: 19 plies

Core: 100% buy Keruing wood

Colour: Red

Grade: A/B

Boiling test: 72 hours in boil water

Weight: 65 ~ 75kg per sheet or uper

Packing: 252 sheets into 1x20ft



Our product container steel parts:

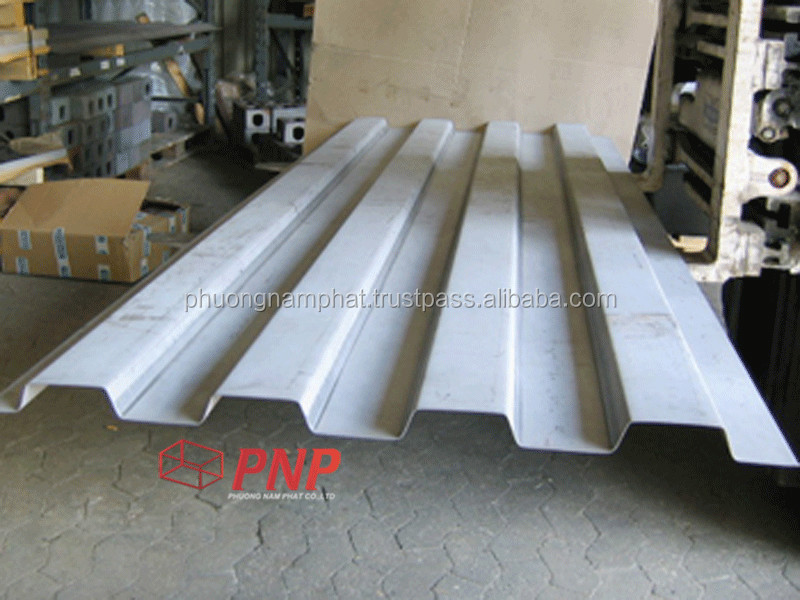

     1.  Container roof panel



Specifications  container roof panel

Name: Container roof panels

Standard: AISI, ASTM, DIN, JIS

Size: 2mm x 1045mm x 2356mm or other

Weight: 10.12/40.12 kg/sheet

Material: Corten-steel

Surface Treatment: Galvanized

Curr: 5 Curr, 4 Curr, 3 Curr

Special Use: High-strength Steel Plate

Application: Container Plate and similar

Packaging Detail: Plywood pallet

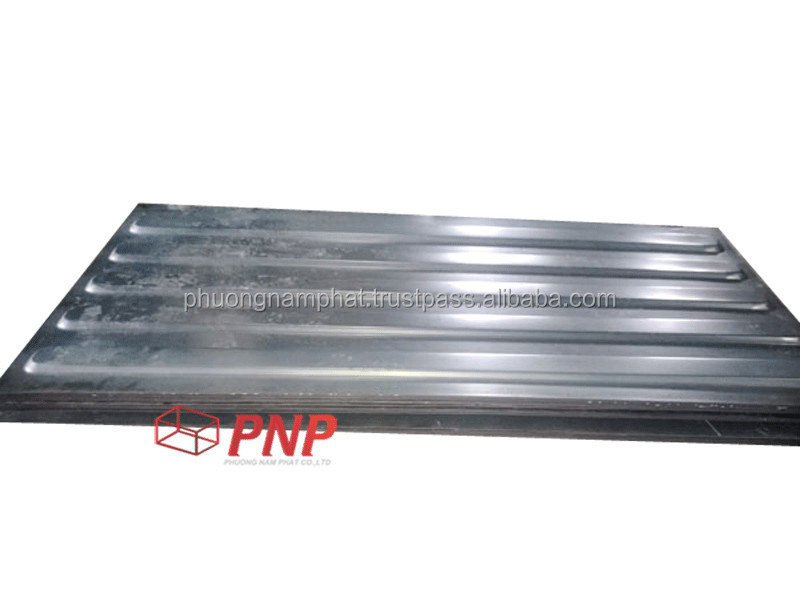

     2.  Container side panel



Specifications container side panel
Material: Corten-steel or Mild Steel
Standard: AISI, ASTM BS, DIN, JIS
Size: 1.6mm/2.0mm x 1160mm x 2400mm or 1.6mm/2.0mm x 1160mm x 2700mm
Weight: 35.5/50.2 kg/sheet
Technique: Hot Rolled
Surface Treatment: Galvanized
Special Use: High-strength Steel Plate
Application: Widely used in container manufacturing, container housing, and so on.
Price: very cheap with the high quality container side panel.

container rear corner post

container front corner post

container corner casting

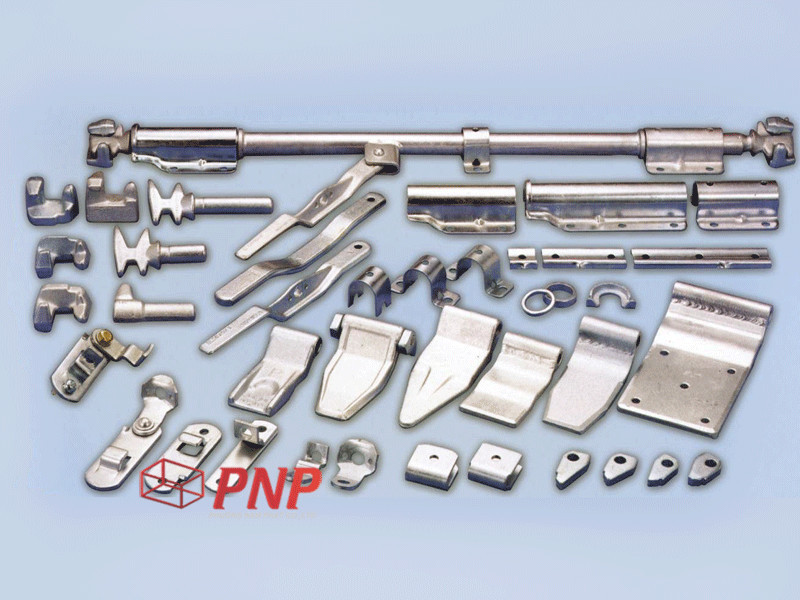

Our product container door parts:



1.  container bearing bracket, container hinge blade, container cam and cam keeper

Container bearing bracket is used for container’s door

We are supplier container bearing bracket for customers used making and repairing containers and similar products

 Container bearing bracket

 Material: steel plate

Appearance: galvanized

Application: container parts

Usage: Fixed the Locking Bar on Container’s Door

Packaging Detail: PP Bag packing.

Delivery Detail: within 15 days after receiving your deposit

Supply by Phuong Nam Phat Co., Ltd
