Marine container parts using building or repairing dry Container

FOB Reference Price:Get Latest Price
$10.00 - $41.00 / Set | 50.0 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 14 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Ho Chi Minh City, Vietnam
Brand Name:
Phuong Nam Phat
Model Number:
PNP
Material:
Steel
Product name:
All container parts
Container plywood:
1160mm*2440mm*28mm
Container side panel:
2*1160*2400mm or 2*1160*2700mm
Container roof panel:
2mm*1045mm*2356mm
Container corner post:
6*70*175*229*70*2400mm
Container corner casting:
178*162*118mm
Container door parts:
Standard ISO
Container front corner post:
6*70*175*229*70*2400mm
Supply Ability
Supply Ability:
500 Cubic Centimeter/Cubic Centimeters per Month 30 container 20'/month
Packaging & Delivery
Packaging Details
a. The permissible gross weight of most 20' and 40' standard containers is 30,480kg.
b. Inside is wrapped with a 0.20mm plastic bag, outer is covered with plywood or carton and then PVC/steel tapes for strength and safety.
c. Carton box packing, then all put in a pallet.
d. Export standard package
e. Delivery time: 14 days
Port
Ho Chi Minh
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 14 To be negotiated
Video Description

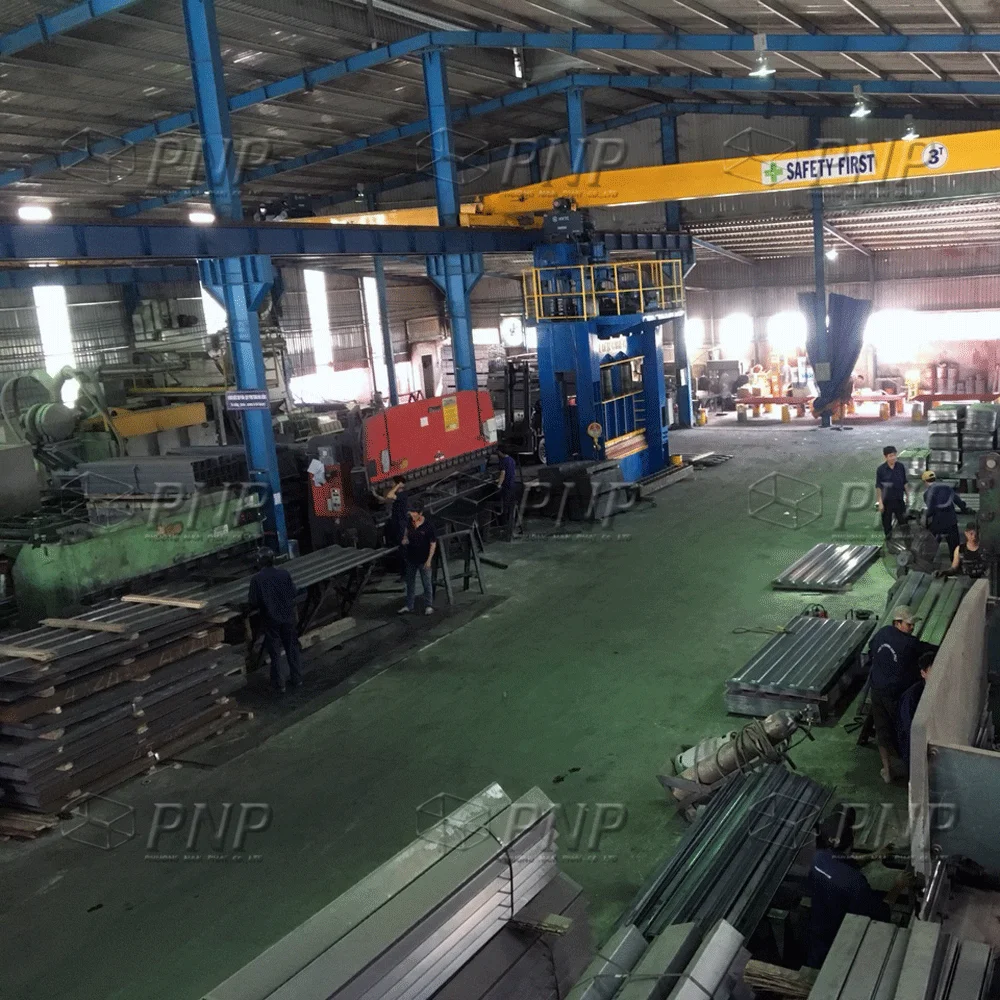

 We manufacture and sell Apitong and Keruing plywood used in the transportation industry. With almost 2000 square feet of manufacturing and warehouse in Viet Nam we are exporting to many countries including USA, France, Belgium, South Asia, Australia, South America…

Furthermore, Phuong Nam Phat Co.Ltd also suplies full package of Container Steel Spare Parts include Roof panel, Side panel, Cross member, Top side rail, Corner post, Door locking devices…with the best price.

Product Description

 Container spare parts including:



Corten Steel (body parts): PNP's Container body parts components are manufactured from ISO quality Corten A steel.



Our main container body parts including Top Side Rail, Side Wall Panel, Roof Panel, Rear Corner Post, Front Corner Post, Front Bottom Rail, Cross Member, Bottom Side Rail, Corner Castings...



Locking Gear(Door locking devices/ Door parts): P-Retainer Plate, Hinge With Rib, Security F-Cam, Door Seal J Type, F-Cam L.H, Split Small Bush, Hinge Pin, Bearing Bracket Outer Small, Split Large, Hinge Lug

The production process of our marine container locking gear, handles, hinges, and other spare parts is carried out by the ISO 9001 system.



Other spare parts: Container flooring plywood, Loading and unloading equipment: Auto twist container spreader, Container spreader string type...

 All container Spare parts

Name of Product

Spec (mm)

Weight/unit
KG (±5%)/pcs

Container Body Parts

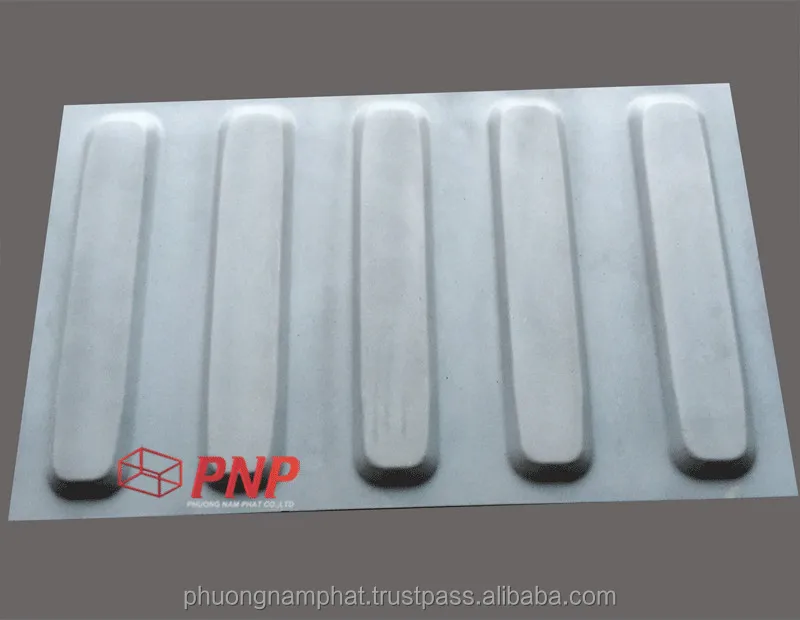

Roof panel 3,4,5 corrugation

1.6/2 x 1045 x 2356/2357

31- 40 kg

Roof panel patching 3,4,5 Corr.

2 x 1045 x 600

11 kg

Side Panel GP

1.6/2 x 1116 x 2400/2700

34-50kg

Front End Panel GP/ HC

2 x 1024 x 2400/2700

45,5 kg - 50,5 kg

Front Corner Post GP/ HC

6 x 229 x 245 x 2400/ 2700

60 kg - 67,4 kg

Rear Corner Post GP/ HC

6 x 40 x 70 x 230 x 2400/ 2700

37 kg - 34 kg

Rear Corner Post Inner GP/ HC

12 x 40 x 113 x 2353/ 2657

32 kg - 34 kg

Cross Member

4 x 45 x 45/ 75 x 122 x 2350

14,5 kg- 16,7 kg

Bottom Side Rail C type

4.5 x 50 x 162 x 5702

45,5 kg

Bottom Side Rail Z Type

4.5 x 30 x 80 x 155 x 5702

49,5 kg

Top Side Rail

3 x 60 x 60 x 5702

30,5 kg

Door Sill

4.5 x 150 x 158 x 2400

31 kg

4.5 x 150 x 165 x 2400

31,5 kg

Front Bottom Rail

4.5 x 115 x 154 x 2400

27 kg

4.5 x 95 x 154 x 2400

25 kg

Extension Plate

3 x 397 x 2400

22,9 kg

3 x 335 x 2400mm

19,5 kg

3 x 420 x 2400mm

24,6 kg

Door Header Upper

3 x 388 x 2400

22,4 kg

3 x 340 x 2400

19,7 kg

Door Header Lower

4 x 112.5 x 113 x 137.5 x 2400mm

26 kg

4 x 110 x 110 x 130mm

25,1 kg

Top end rail

4 x 60 x 104 x 380 x 2400mm

40,2 kg

4 x 60 x 85 x 380 x 2400mm

39,1 kg

Gooseneck rail

6 x 40 x 146 x 2400mm

21,25 kg

Tunel Rail

4 x 95 x 50 x 95 x 2400mm

17,33 kg

Door edge member

3.2 x 50 x 100 x 2260

16,4 kg

Door edge member

3.2 x 50 x 100 x 2560mm

18,4 kg

Door rail

4 x 50 x 150 x 50 x 943mm

6,8 kg

J bar

6 x 30 x 50 x 2400

7,5 kg
