Container Plywood made in Vietnam

FOB Reference Price:Get Latest Price
US $38-59 / Sheets | 264 Sheet/Sheets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Ho Chi Minh City, Vietnam
Brand Name:
PNP
Model Number:
PLW01
Usage:
Outdoor, Indoor
Grade:
First-Class
Main Material:
Apitong/Keruing
Formaldehyde Emission Standards:
E0
Plywood Type:
21-Ply Boards
Product name:
Container Plywood made in Vietnam
Type:
Wood Flooring, Plywoods
Wood Flooring Type:
Apitong/keruing
Plywood:
28mm
Main Materia:
Hardwood/apitong/keruing
Glue:
WPB
Bonding intensity:
0.7Mpa
Thickness:
28mm
Weight:
55-65Kgs/sheet
SupplyAbility
SupplyAbility:
30000 Sheet/Sheets per Month
Packaging & Delivery
Packaging Details
264 sheet in container 20ft (8 pallet)
Port
Cat Lai Port
Lead Time :
14 Days









Company Information



Phuong Nam Phat Service and Trading Co.ltd Offers - Container Plywood About Phuong Nam Phat Service and Trading Co. ltd Phuong Nam Phat Service and Trading Co. ltd has manufacturing container flooring plywood, Originated from container parts business, we open our plywood factory to control the quality of container plywood.

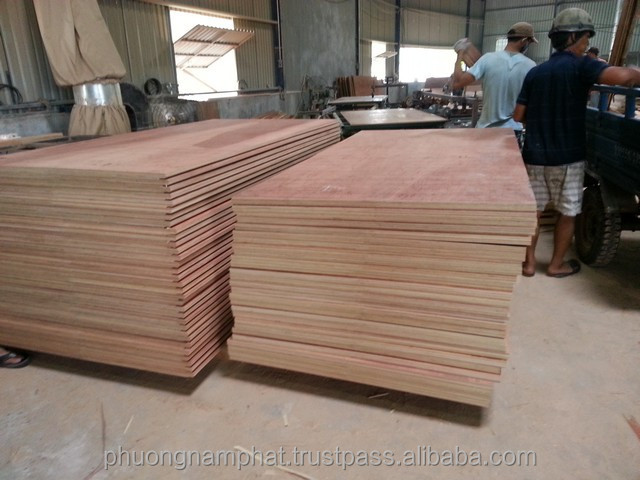

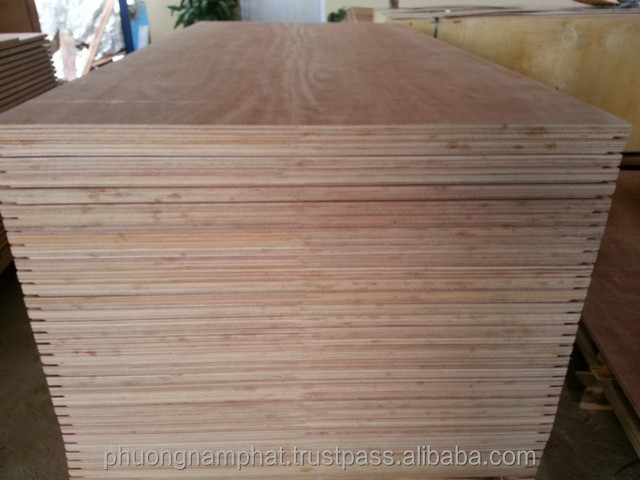

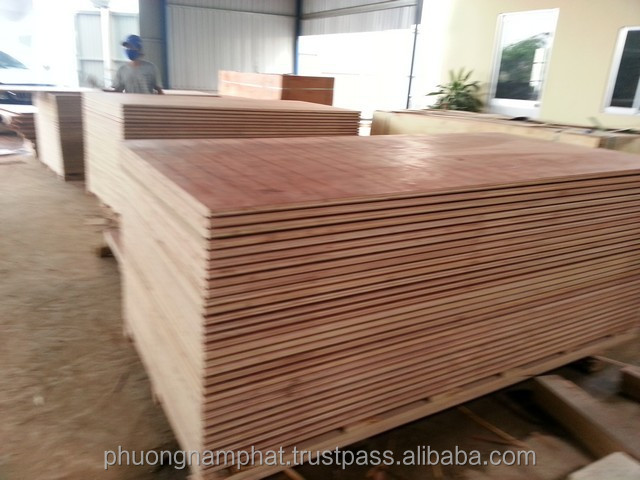

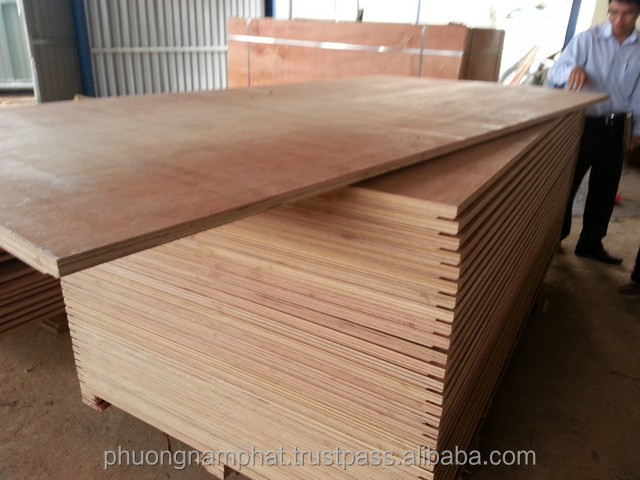

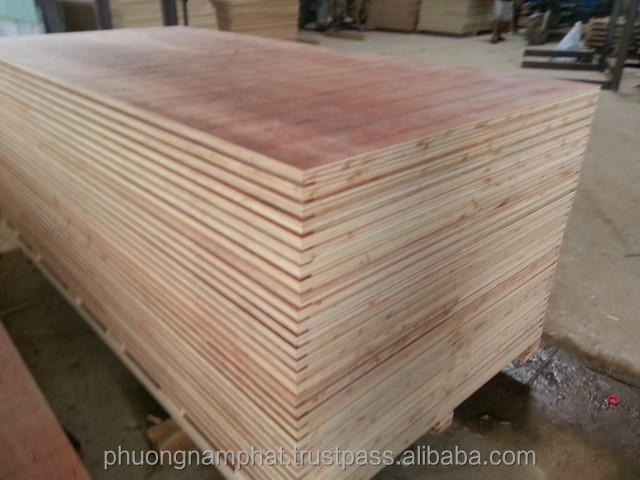

Product Description



Typecontainer plywood
Size 28mm x 1160mm x 2400 mm or 28mm x 1224mm x 2440mm
Thickness28mm, 21 plies

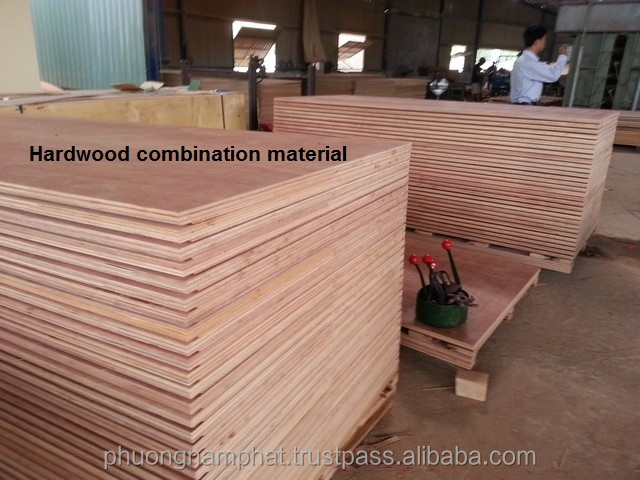

Coreall hardwood - red hard wood, keruing, etc.
Surface finishkeruing/apitong  veneer  ( 0.4-0.5mm thick)
GlueWBP (phonelic glue)
Grade:A/A A/B
Length&width Tolerance+/-2.5mm
Thickness Tolerance+/-0.2mm(≤3.0mm)
UsageMake or repairing container flooring
Density

750 - 800 kg/m3

Weight60- 66 kg/sheet
Tensile strengthup  7000 N









Our Services



OTHERWISE, WE ALSO SUPPLY MORE CONTAINER SPARE PARTS.

Part/ Production Name

Descriptions

Dimensions

End Door

ISO Corner Fitting, 8pcs/set

178 *162 *118mm

Door Hinge Set

Blade, Pin, Lug, Bush

Container Door Locking Device

 Handle, Handle hub, Seal set

Door Gaskets

1143 *2254mm

Gasket Retainer



CSC plate

0.8 *100 *200mm

Door Panel (3 CORR)

2.0 *943 *1957mm

Door Vertical Member Edge SQ.Tube

3.2 *50*100 *2260mm

Door Horizontal Member Edge, Channel

3.0 *50 *150 *1024 or 943mm

Door Sill

4.5 *158 *150 *2400mm

Door Header Lower

4.0*112.5*113*137.5*2400mm

Rear Corner Post inner

12*113*40*2353mm

Rear Corner Post outer

6.0*70*39*230*2400mm

End Front

Front End Panel

2.0*1024*2400mm

Front Corner Post

6.0*209*225*2400mm

Front Bottom Rail

4.0*115*154*2400mm

Top End Member SQ.Tube (Horizontal)

3.0*60*60*2112mm

Roof

Container Roof Panel (5 CORR)

2.0*1045*2356mm

Door Header Upper (Extension Plate)

3.0*388*2400mm

Top End Rail (Extension Plate)

3.0*397*2400mm

Side

Container Side Panel

1.6*1116*2400mm

Top Side Rail, SQ. Tube

3.0*60*60*5702mm

Ventilator Cover

204*67*25mm

Base

Container Plywood Flooring, 19ply – 21ply

28*1160*2400mm

Floor screw

L=50 to 120mm

Bottom Side Rail

4.5*50*162*30*5702mm

Cross Member Small

4*45*122*45*2350mm

Cross Member Large

4*45*122*75*2350mm

Fork Pocket Bottom Plate

360*300mm

Fork Pocket Top Plate

360*2350mm

Gooseneck parts



Container Flooring Plywood

Glue WBP High Quality 28mm Container Flooring Plywood

28*1160*2400mm
28*1220*2440mm
